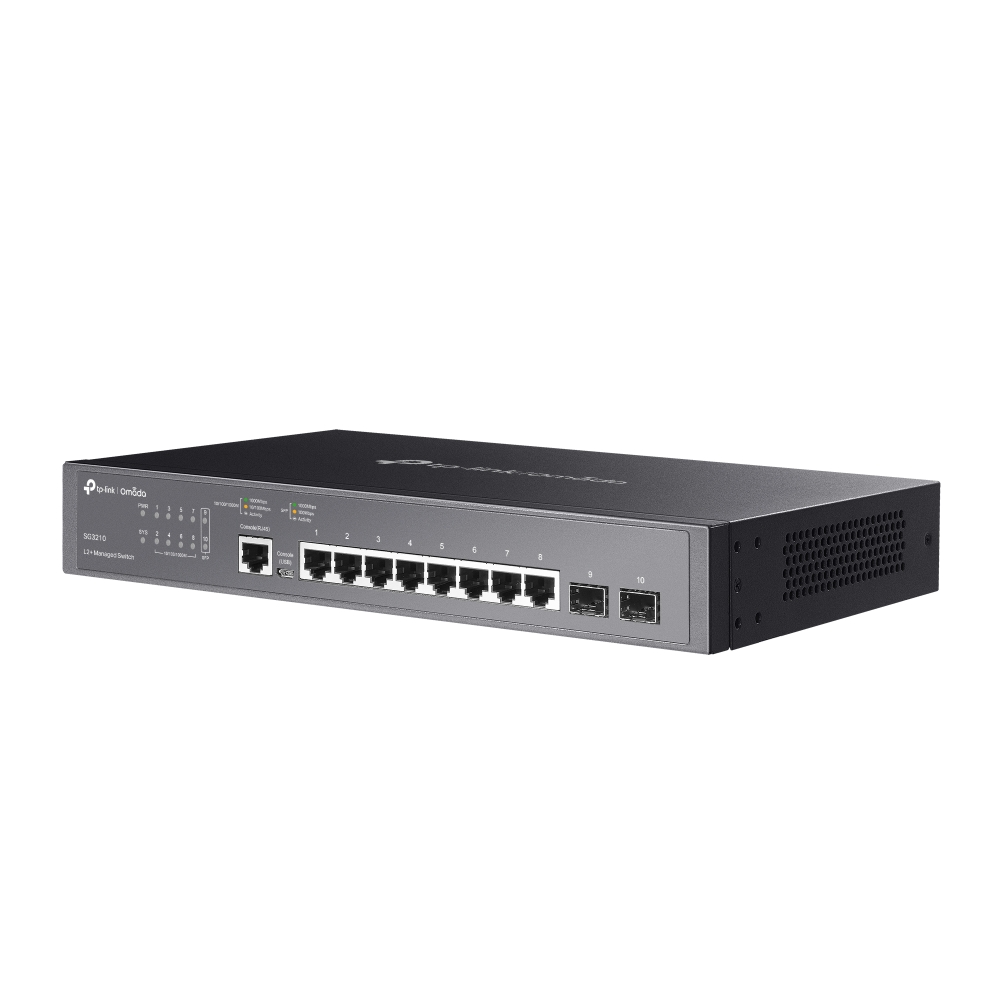

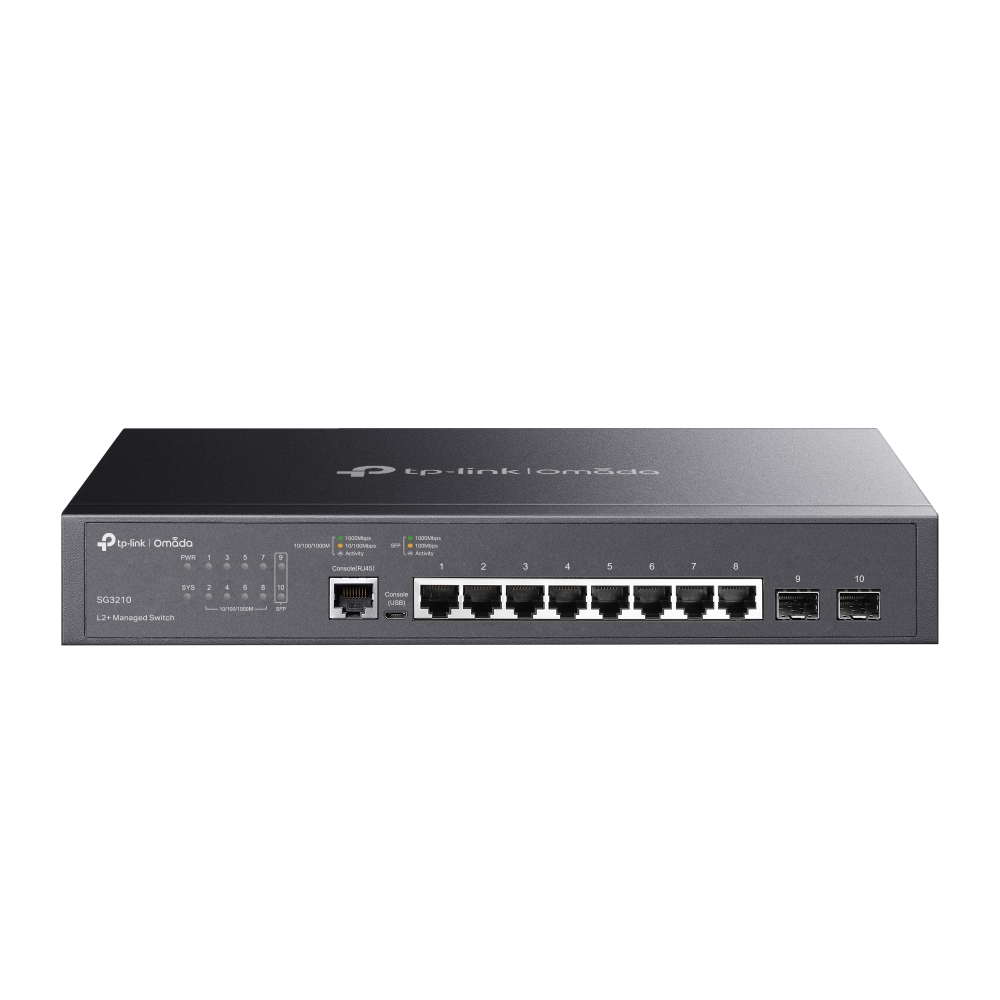

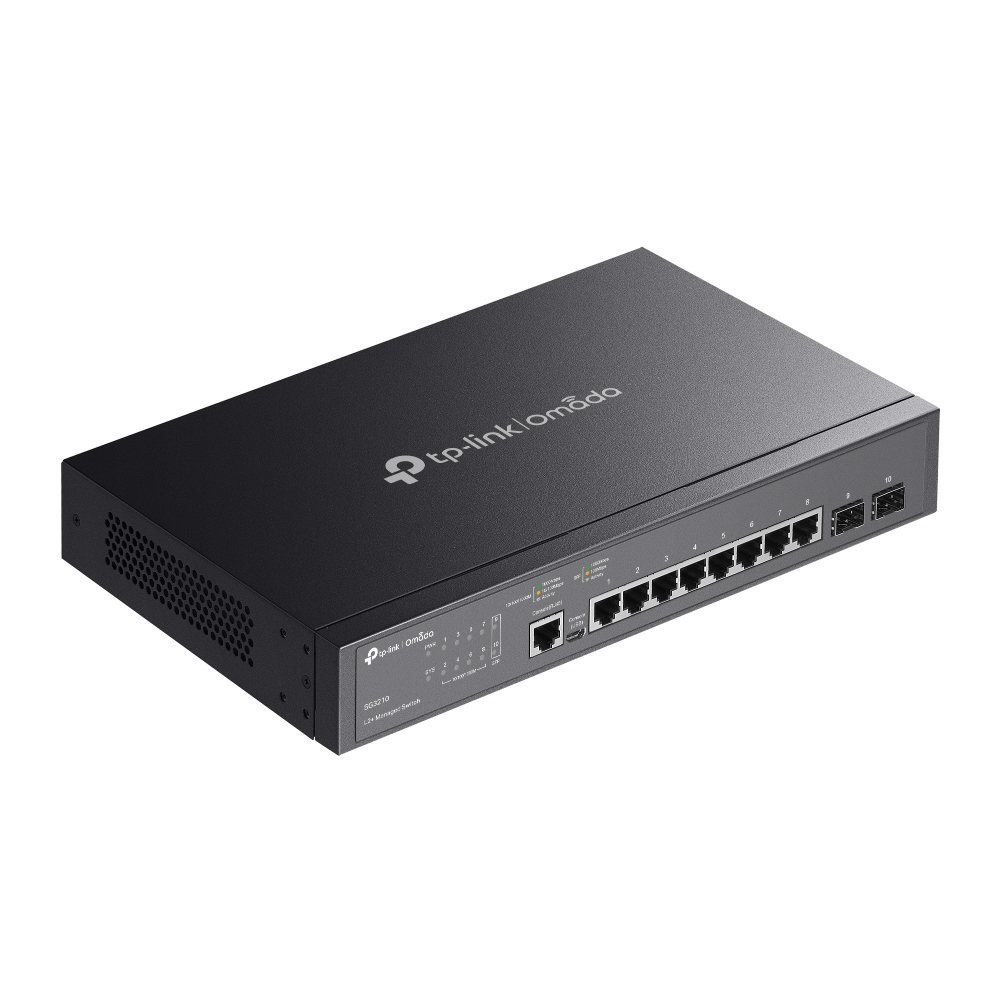

TP-LINK SG3210 Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
เพิ่มเมื่อ: 2025-05-19 20:27:22.0
แก้ไขล่าสุด: 2025-05-19 20:33:39.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) TP-LINK SG3210 Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
TP-LINK SG3210
SWITCH (สวิตซ์) TP-LINK SG3210 Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
- 8× Gigabit RJ45 ports and 2× Gigabit SFP slots
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Interface :
• 8× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity : Fanless
Physical Security Lock : √

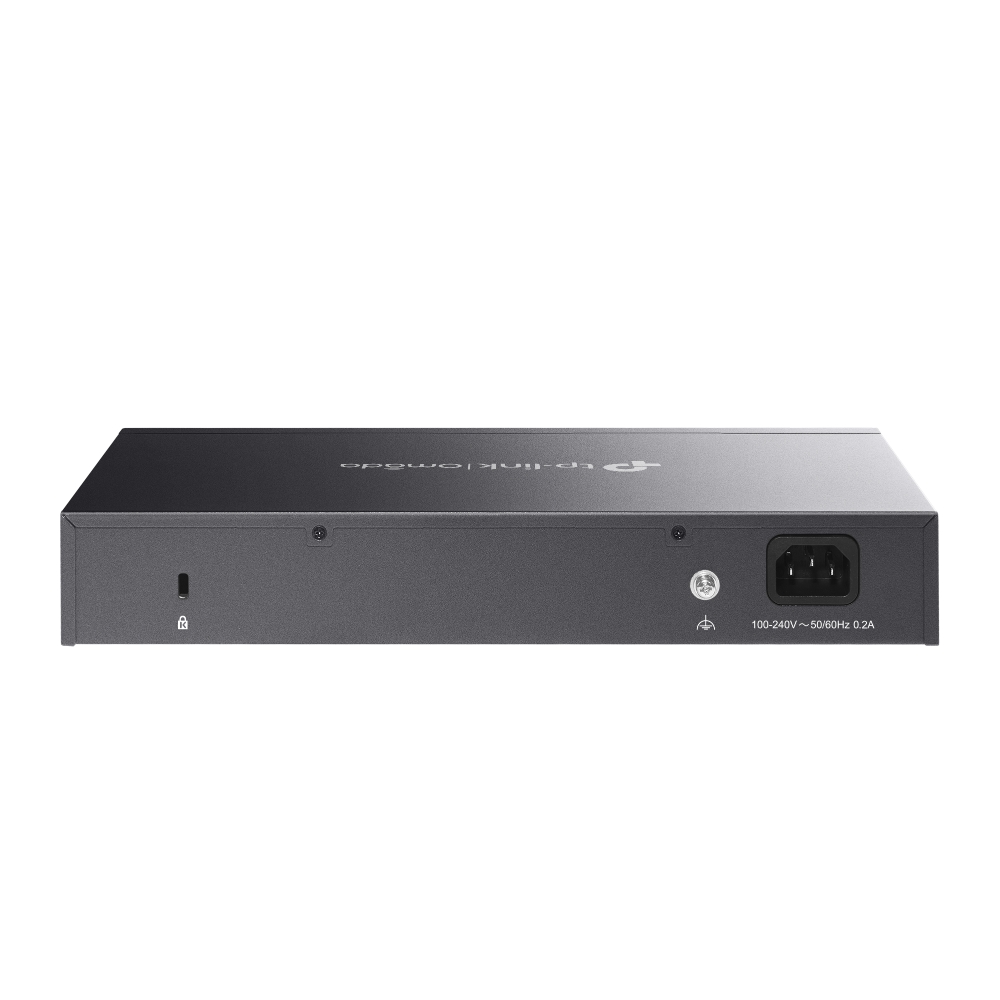

Power Supply : 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) : 11.6×7.1×1.7 in (294×180×44 mm)
Mounting : Rack Mountable / Desktop
Max. Power Consumption : 6.84 W (220 V/50 Hz)
Max Heat Dissipation : 23.33 BTU/h (220 V/50 Hz)
Switching Capacity : 20 Gbps
Packet Forwarding Rate : 14.89 Mpps
MAC Address Table : 8K
Packet Buffer Memory : 4.1 Mbit
Jumbo Frame : 9 KB
Quality of Service :
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features :
• 32 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
L2 Multicast :
• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features :
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
ISP Features*:
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
VLAN :
• VLAN Group: Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ
• Voice VLAN
Access Control List :
• Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL apply to Port/VLAN
Package Content :
• SG3210 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment :
• Operating Temperature: 0–45 ℃ (32–113 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
