| NEW PRODUCT
| TP-LINK InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
TP-LINK InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
เพิ่มเมื่อ: 2025-10-31 12:50:18.0
แก้ไขล่าสุด: 2025-10-31 12:51:13.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comIP-CAMERA (ไอพีคาเมร่า) TP-LINK InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera (รับประกัน 3ปี)
IP-CAMERA (ไอพีคาเมร่า) TP-LINK InSight S345-4G
IP-CAMERA (ไอพีคาเมร่า) TP-LINK InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
- ความคมชัดสูงพิเศษ 4MP และภาพสีเต็มตลอด 24 ชั่วโมง
- รองรับเครือข่ายมือถือ 4G*
- พอร์ต LAN 3 พอร์ตสำหรับอุปกรณ์ดาวน์สตรีม
- การจำแนกประเภทคนและยานพาหนะ
- Smart Detection
- เทคโนโลยีการปรับปรุงวิดีโออัจฉริยะ
- Active Defense and Two-Way Audio
- H.265+ เทคโนโลยีการบีบอัด
- IP66 กันฝน กันฝุ่น
CAMERA
Image Sensor : EU: 1/2.7“ Progressive Scan CMOS
Shutter Speed : 1/3 to 1/10000 s
Slow Shutter : Yes
Minimum Illumination : 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism : IR Cut Filter
Day/Night Switch : Unified/ Scheduled/ Auto
LENS
Type : Fixed Focal Lens
Focal Length : 4 mm
Aperture : F1.6
FOV :
EU:
Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens Mount : M12
DORI Distance :
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range :
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
ILLUMINATOR
IR LED :
• Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LED :
• Quantity: 2
• Range: 30m
Illuminator On/Off Control : Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution :
2688x1520
Main Stream :
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Sub-Stream :
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control : CBR, VBR
Video Compression :
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type : High Profile
H.264+ : Main Stream Supported
H.265 Type : Main Profile
H.265+ : Main Stream Supported
Video Bit Rate :
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings :
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
Image Enhancement : BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range : 120dB
Image Parameters Switch : Yes
Privacy Mask : Up to 4 Masks
ROI : 1 Region
OSD Setting : Yes
AUDIO
Audio Communication : Two-Way Audio
Audio Input : Yes (Built-in Microphone)
Audio Output : Yes (Built-in Speaker)
Audio Compression : Yes
Audio Sampling Rate : 8KHz
Environment Noise Filtering : Yes
Audio Bit Rate : 64 Kbps(G.711 alaw)
NETWORK
Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, 802.1x
ONVIF : Yes
API : Open Network Video Interface (Profile S/G/T)
Simultaneous Live View : 3 Main Streams & 3 Sub-Streams
Client : VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser :
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud : Yes
Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard :
EU:
LTE-TDD/LTE-FDD/WCDMA
SIM Type : Nano SIM
Category : 4
Frequency :
EU:
• LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
Uplink and Download Data Rate : Uplink: 50 Mbps, Downlink: 150 Mbps
Antenna
• Quantity: 2
• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
EU:
Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
INTERFACES
Network Interface : 3 RJ45 10/100M LAN Ports
Alarm : N/A
Reset Button : Yes
Power : DC Power Port
On-board Storage : Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*

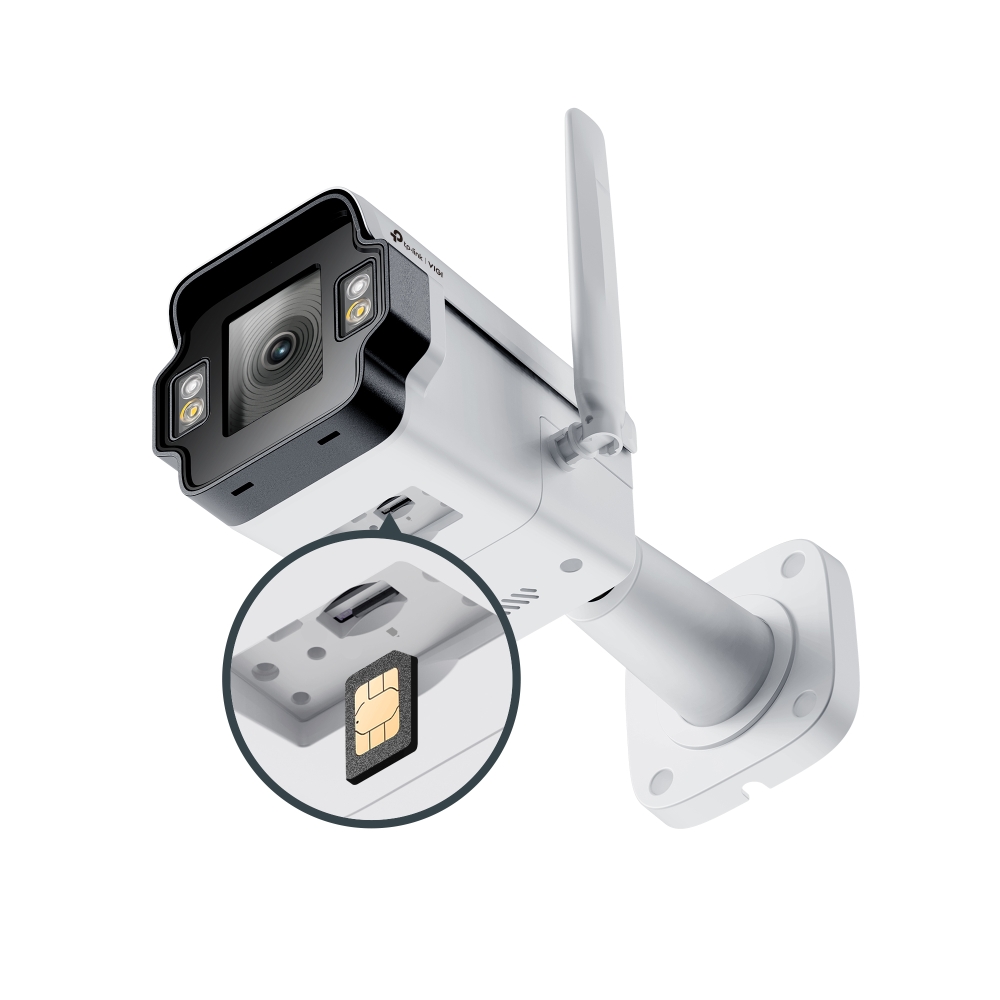

Built-in Nano-SIM Card Slot : Yes
Built-in Microphone : Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker : Yes
Audio : N/A
GENERAL
Operating Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature : -40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity : 95% or Less (Non-Condensing)
Storage Humidity : 95% or Less (Non-Condensing)
Package Content
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material : Metal
Net Weight : 1.09 Kg
Power Supply : 12V DC/1 A, 5.5 mm Coaxial Power Plug
Protection : IP66 Weatherproof
Product Dimensions (L x W x H) : 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
Certifications : WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66
